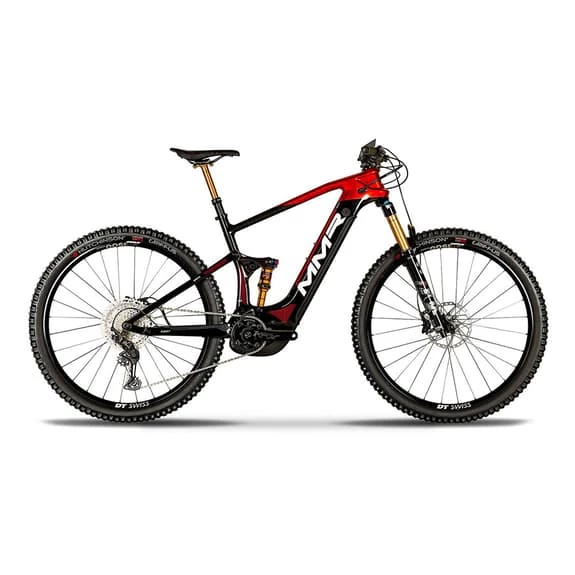

The MMR X-Bolt 120 00 electric bike was built by MMR staff. The frame and fork are made of carbon, which makes them lightweight. Thanks to the Shimano XT 1×12-speed drivetrain, and the 29″ DT Swiss H-1900CL wheels, the bike provides excellent performance during sport. The Bosch Cx Gen-4/ Kiox motor provides power for when you need help on your longer routes. The geometry is designed to suit both male and female morphology. It combines a sophisticated structure in the tubes that adds efficiency, as well as a plus of aerodynamics thanks to the profiles that adapt.
The MMR X-Bolt electric bike’s suspension system employs a Horst Link rear pivot point. It uses “conventional” internal cable routing, with entry from the frame and full integration of the battery into the frame. They use SRAM UDH derailleur hanger and the steering area is one of the areas that gives more personality to its design. In this case they have opted for the 625 Wh battery together with Bosch motor and an assembly that included the Kiox display.
| Main Features | |
|---|---|
| Size: | S,M,L |
| Frame: | X-Bolt – G2 Carbon |
| Fork: | Fox Factory 34 E-Bike with 120 mm stroke |
| Fender: | Fox Float DPS Factory 120 E-bike |
| Motor: | Bosch Performance Line CX |
| Battery: | Bosch Power Tube 625 wh |
| Transmission | |
| Gears: | Shimano XT M8100 1×11 speeds |
| Gearbox: | Shimano XT M8100 1×11 speeds |
| Cranks and plates: | Fsa Forged E-bike 34 teeth |
| Cassette: | Shimano Deore M6100 11 Speeds (10-51) |
| Chain: | Shimano Deore M-601 11 speeds |
| Brakes | |
| Front brake: | Shimano XT M8100 |
| Rear Brake: | Shimano XT M8100 |
| Wheels and Tyres | |
| Wheel Rims: | DT Swiss H-1900 35 Hybrid MS TLR |

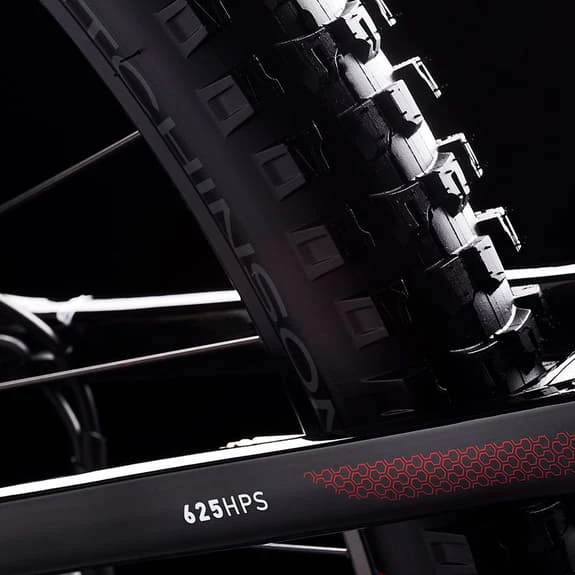

| Tyres: | Hutchinson Griffus TLR Sideskin 29×2.50 |
| Components | |
| Handlebars: | Race Face Ride 35 760mm |
| Stem: | Race Face Ride 35 |

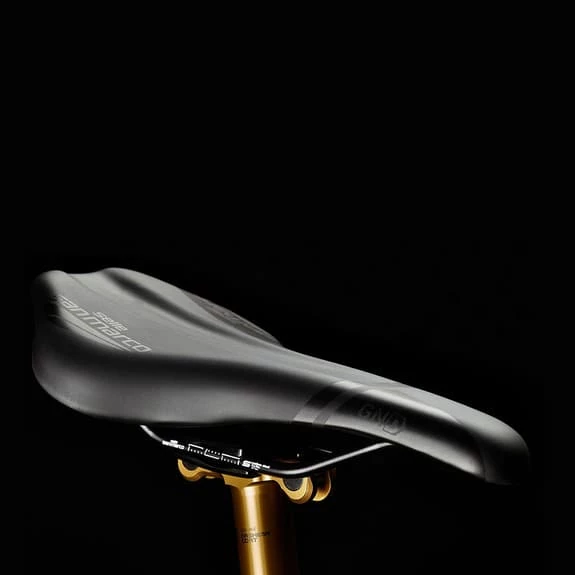

| Saddle: | San Marco GND Dynamic |
| Seat Post: | Fox Transfer Factory Dropper 125mm 30.9 |
| Pedals: | Not included |
