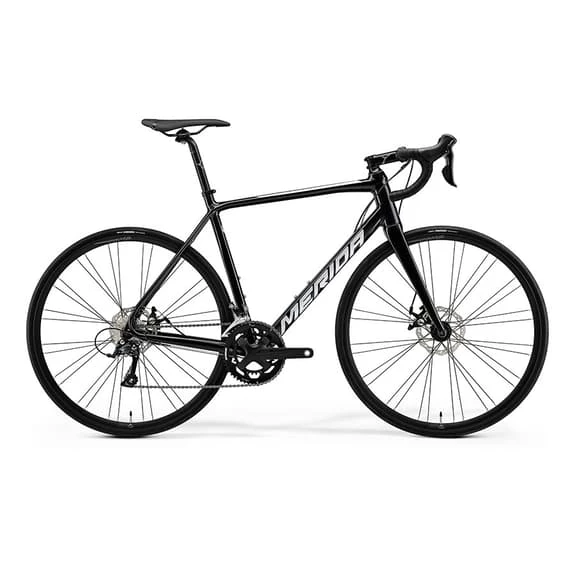

Merida Scultura 200 Road Bike Black Silver

The Merida Scultura 200 road bike is designed to be light and comfortable. With every evolution it has undergone, it has done nothing but improve on those characteristics. This latest version goes one step further and introduces aerodynamic benefits, previously only seen on more time trial specific bikes. The weight of the entire frame has been reduced. Intensive work has been carried out in the laboratory until they have managed to break the 1000 gram barrier for the frame with the fork. The secret to reaching a figure that had never been reached before lies in a new manufacturing process developed by the engineers.

Main characteristics

Size: XS,S,S/M

Weight: 9.24 kg

Frame: Scultura lite-BSA

Fork: Scultura CF

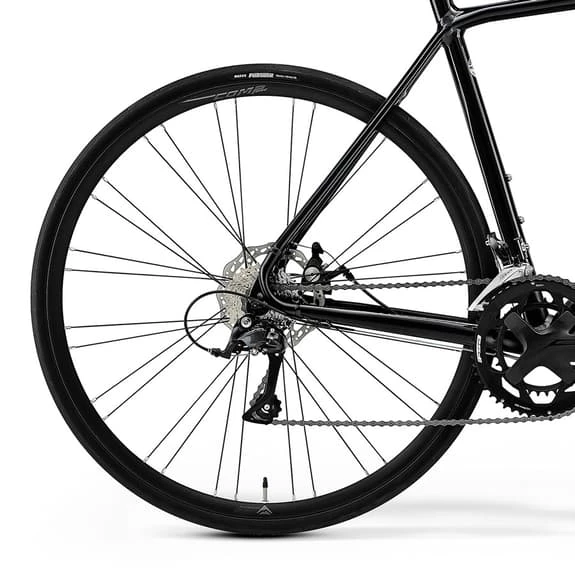

Drivetrain

Derailleur: Shimano Sora; GS

Cassette: SunRace CS-9S; 11-28 ATC; 9-speed

Chain: KMC M99

Brakes

Front brake: ROAD Dual Pivot

Rear brake: ROAD Dual Pivot

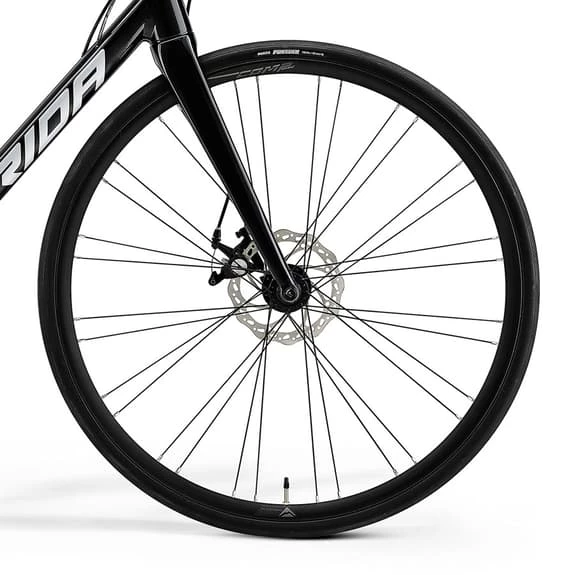

Wheels and tyres

Rims: Merida Comp SL; 17 IWR; 24 HRI

Tyres: Front: Maxxis Dolomites; 700x25C; fold,Rear: Maxxis Dolomites; 700x25C; fold

Front Hub: VP M700F; 100×9 WHF; 24 SPH

Rear Hub: VP M700R; 130×9 WHR; 28 SPH

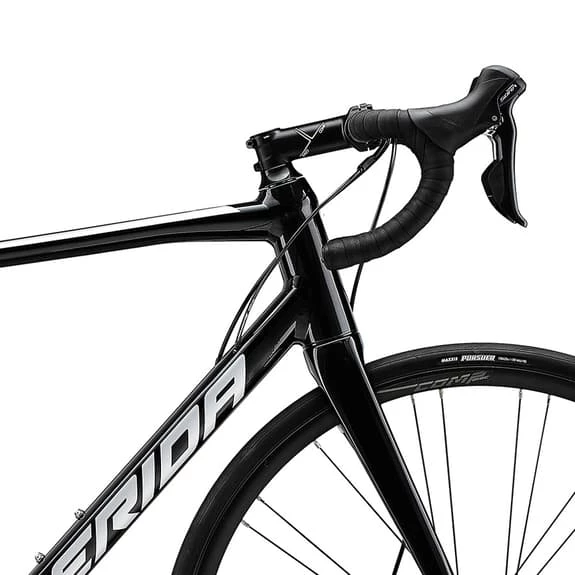

Components

Handlebars: Merida Expert SL

Grips: Merida ROAD Comp

Stem: Merida Comp CC; 31.8 DSH; -6 ASD

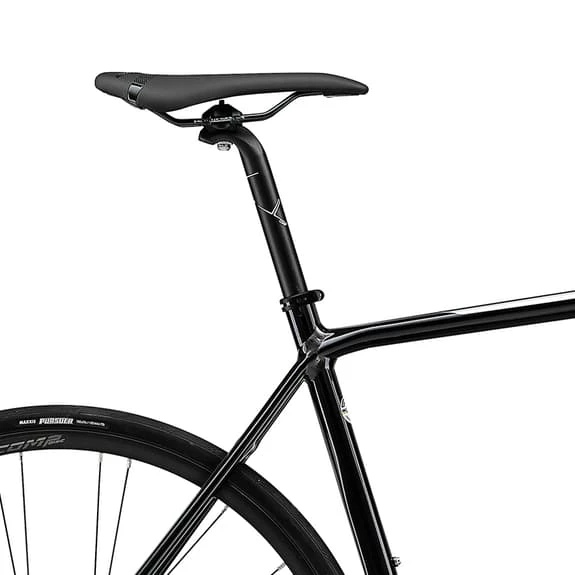

Saddle: Merida Comp SL

Seatpost: Merida Comp CC; 27.2 DSP; 12 SSB
