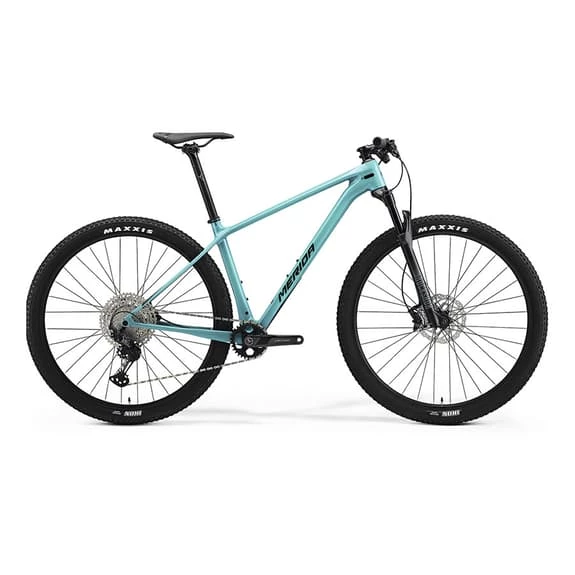

The Merida Big Nine 4000 MTB was built by the Merida staff. The frame and fork are made of carbon, which makes them lightweight. Thanks to the Shimano XT M8100 1×12 speed transmission and the 29″ Merida Expert CC disc brake wheels, the bike provides excellent performance during sport. The Rock Judy Gold fork offers you security and control so you can enjoy your mountain routes to the fullest. The geometry is designed to suit both male and female morphology. It combines a sophisticated structure in the tubes that adds efficiency, as well as a plus of aerodynamics thanks to the profiles that adapt.
The Merida Big Nine 4000 MTB bike is clearly focused on XC competitions and not only because of the clear influence of the Multivan Merida Biking. The frame is designed to be compatible with 1x transmissions only. Although it will be no less competitive in marathon events. The Flex Stay technology, in combination with the S-Flex of the seatpost of our own design, makes the Big Nine one of the most comfortable rigid bikes. Merida Biking Team is focused, above all, on weight and rigidity. This bike, it mounts the rear brake caliper on the pods.
This design, which may seem insignificant, actually makes sense, both in terms of performance and functionality. On the one hand, the sheaths are structurally much more rigid and resistant than the braces and therefore provide a better basis for supporting the forces generated by the brake. The 12 x 148 BOOST axles are one of the new MTB standards. The wider axle allows the frame to be stiffer, but even more importantly, the wheel to be stiffer. Thanks to those extra 6mm the wheel spokes can be opened more, achieving a more lying angle and therefore a higher rigidity.
| Main Features | |
|---|---|
| Size: | S,M,L,XL,XXL |
| Frame: | Big Nine Carbon Merida |
| Fork: | Rock Shox Judy Gold |
| Transmission | |
| Gears: | Shimano XT M8100 Shadow+ 12 speeds |
| Gearbox: | Shimano SLX 12 speeds |
| Cranks and plates: | Shimano Deore M6100 32 teeth |
| Cassette: | Shimano Deore M6100 12 Speeds (10-51) |
| Chain: | KMC 12 speeds |
| Brakes | |
| Front brake: | Shimano M6100 2 Pistons |
| Rear Brake: | Shimano M6100 2 Pistons |
| Wheels and Tyres | |
| Wheel Rims: | Merida Expert CC |
| Tyres: | |
| Frontal Hub: | Shimano MT400-B with 110×15 mm thru-axle |
| Rear Hub: | Shimano MT410-B with 148×12 mm thru-axle |
| Components | |
| Handlebars: | Merida Expert CC |
| Stem: | Merida Expert CC |
| Saddle: | Comp CC Merida |
| Seat Post: | Merida Expert CC |
| Pedals: | Not included |
