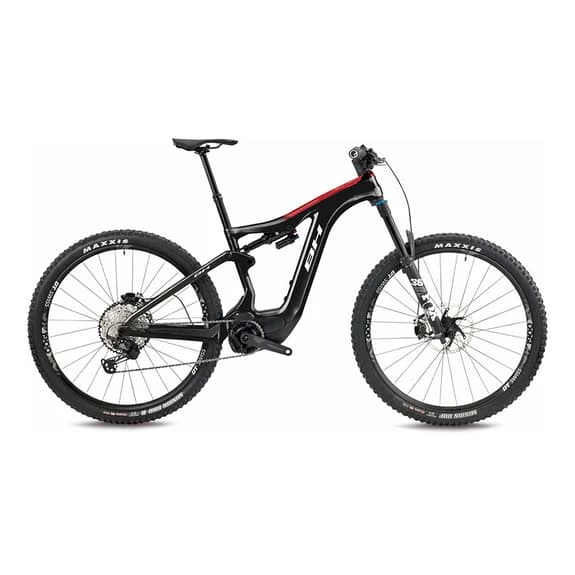

BH Bikes BH Atomx Lynx Carbon 9.8 Electric Bike Black Red

The BH Atomx Lynx Carbon 9.8 electric bike has been built by the staff of BH Bikes. The frame and fork are made of carbon, which makes them lightweight. Thanks to the Shimano XT 1×12 speed transmission and 29 DT Swiss H1900 Tubeless Ready wheels, the bike provides excellent performance during sport. The BROSE SMAG motor provides power for when you need help on your longer routes. The geometry is designed to suit both male and female morphology. It combines a sophisticated structure in the tubes that adds efficiency, as well as a plus of aerodynamics thanks to the profiles that adapt.

The BH Atomx electric bike is your bike if you are looking for an electric bike with an innovative design, high performance, with a High Performance geometry and great autonomy, its battery has 720 Wh. The Brose S Mag motor, which is 17% smaller, has a triple sensor and a maximum cadence of 130rpm. It has 4 assistance levels; Eco 75%, Eco+ 150%, Sport 250% and Boost 410%. It is different because its patented “X System”, designed in conjunction with Item Design Works, guarantees maximum frame rigidity. Its high performance geometry allows for maximum performance.

Technology:

– X System: This led to a patented and innovative “X System” solution, which proposed a different and ergonomic integration. The “X System” guarantees maximum frame rigidity. The diagonal tube has a triple extrusion without any type of cut or CNC that alters its properties or weakens it.

– 720 Wh: Its battery stands out with a capacity of 720 Wh and with the new 21700 cells with the highest energy density on the market (5Ah) that give the AtomX electric bicycle a range of up to 155km. The Brose S Mag motor, light and compact, provides a maximum cadence of 130rpm (its optimum point of operation at high cadences being 90-120rpm) and allows the parametrisation of assistance modes.

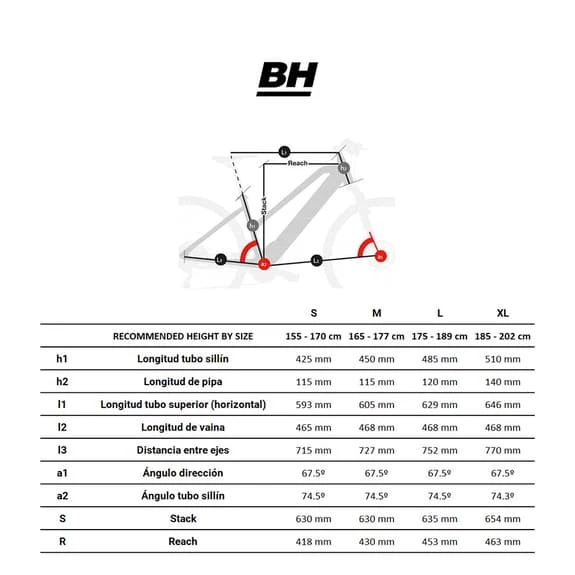

– High Performance geometry: the optimal arrangement of the electrical elements allows you to design bikes without sacrifice and develop a High Performance geometry. Thanks to the position of the diagonal tube, there is a wide wheel arch and fork for Enduro and Aggressive Trail use.

– Security Smart Key Bracelet: each user will have a stylish Smart Key bracelet that will allow the removal of the battery, for charging without the need of a key. It can be configured as a safety bracelet so that only the rider can operate his AtomX.

– X Display & Remote: the X Display is located inside the handlebar to ensure maximum protection. It is a 2.8″ LCD colour display. It incorporates Ant+ and Bluetooth connection and gives information of autonomy, battery, time, distance, speed, power, cadence and time. The X Remote, incorporates the vibration function for notifications.

Main Features
Size:	S, M, L, XL
Frame:	160 mm Full 29″

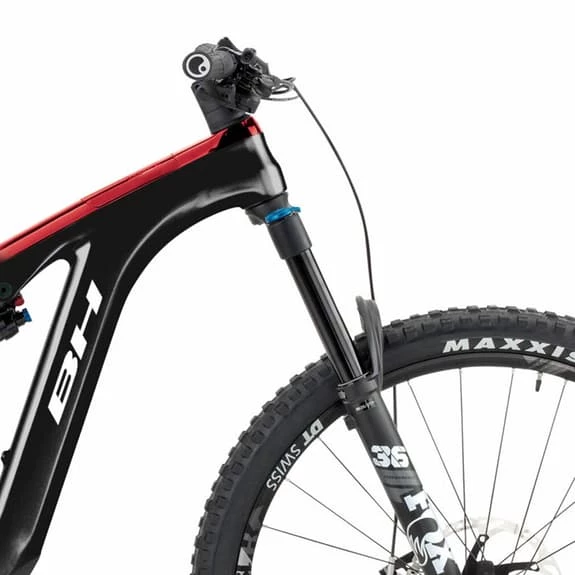

Fork:	FOX 36 FLOAT Performance 160mm stroke
Shock absorber:	FOX FLOAT DPS Performance
Motor:	BROSE SMAG
Battery:	720 Wh
Battery Life:	Up To 155 Km
Transmission
Gears:	Shimano XT 1×12 speeds
Gearbox:	Shimano SLX 1×12 speeds
Cranks and plates:	Praxis 32 teeth

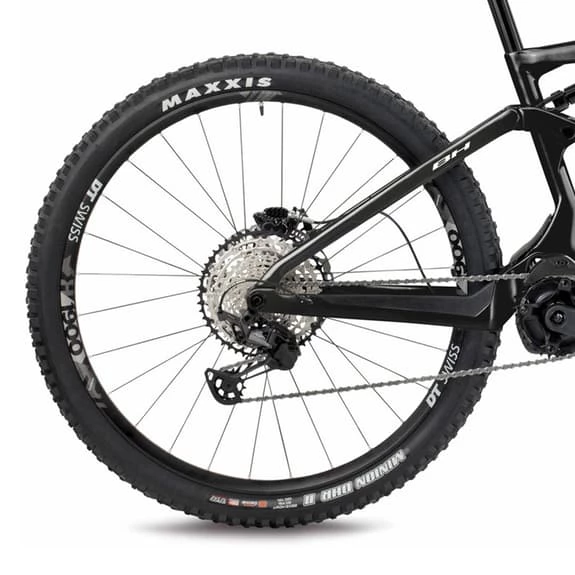

Cassette:	Shimano CSM8100 12 speeds (10- 51)
Chain:	Shimano CNM7100 12 speeds
Brakes
Front brake:	Shimano XT 4 Piston 203mm
Rear Brake:	Shimano XT 4 Piston 203mm
Wheels and Tyres

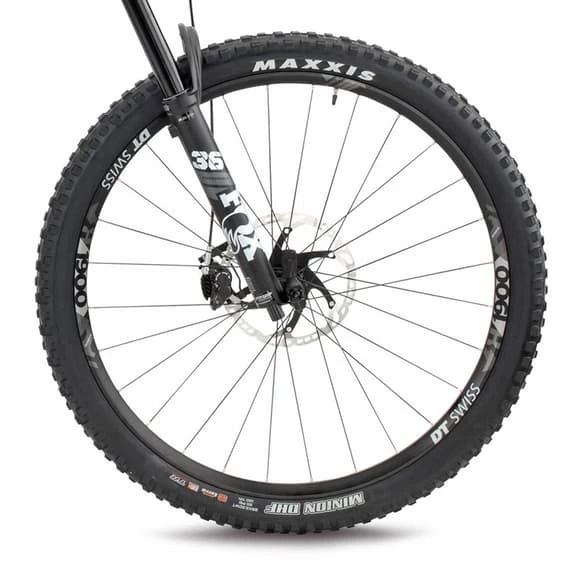

Wheel Rims:	DT Swiss H1900 Tubeless Ready
Tyres:	Maxxis Minion TPI120 Terra EXO TR 29″X2,5/2,4
Components
Handlebars:	Race Face Aeffect 35 780mm
Stem:	Race Face Aeffect 35
Saddle:	Prologue Proxim W450 Stn

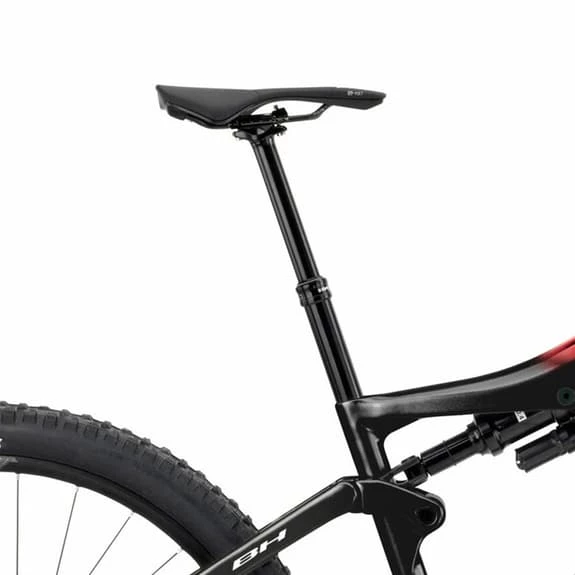

Seat Post:	Race Face DP Aeffect 31,6
Pedals:	Not included
