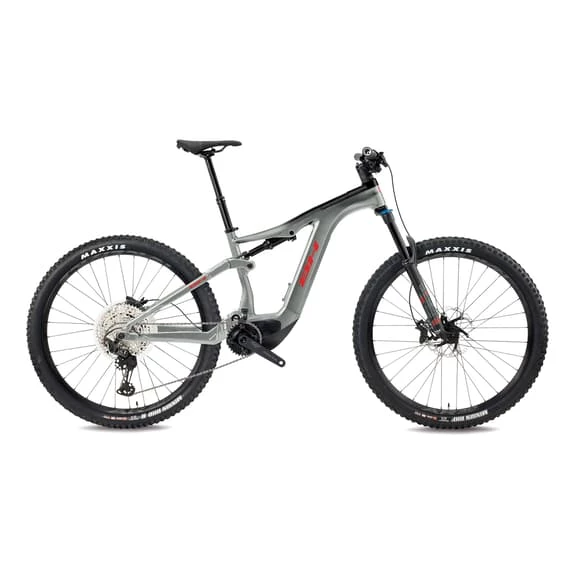

BH Bikes BH AtomX CB Electric Bike Grey

The BH AtomX CB electric bike has been built by the staff of BH Bikes. The frame and fork are made of carbon, which makes them lightweight. Thanks to the Shimano Deore 1×11 speed transmission and the 29” Race Face Ar 30 TR Tubeless Ready wheels, the bike provides excellent performance during sport. The BROSE SMAG motor provides power for when you need help on your longer routes. The geometry is designed to suit both male and female morphology. It combines a sophisticated structure in the tubes that adds efficiency, as well as a plus of aerodynamics thanks to the profiles that adapt.

The BH Atomx electric bike is your bike if you are looking for an electric bike with an innovative design, high performance, with a High Performance geometry and great autonomy, its battery has 720 Wh. The Brose S Mag motor, which is 17% smaller, has a triple sensor and a maximum cadence of 130rpm. It has 4 assistance levels; Eco 75%, Eco+ 150%, Sport 250% and Boost 410%. It is different because its patented “X System”, designed in conjunction with Item Design Works, guarantees maximum frame rigidity. Its high performance geometry allows for maximum performance.

Technology:

– X System: This led to a patented and innovative “X System” solution, which proposed a different and ergonomic integration. The “X System” guarantees maximum frame rigidity. The diagonal tube has a triple extrusion without any type of cut or CNC that alters its properties or weakens it.

– 720 Wh: Its battery stands out with a capacity of 720 Wh and with the new 21700 cells with the highest energy density on the market (5Ah) that give the AtomX electric bicycle a range of up to 155km. The Brose S Mag motor, light and compact, provides a maximum cadence of 130rpm (its optimum point of operation at high cadences being 90-120rpm) and allows the parametrisation of assistance modes.

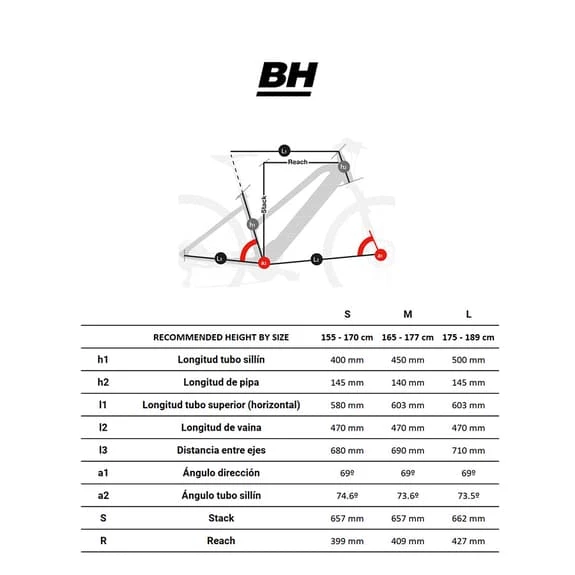

– High Performance geometry: the optimal arrangement of the electrical elements allows you to design bikes without sacrifice and develop a High Performance geometry. Thanks to the position of the diagonal tube, there is a wide wheel arch and fork for Enduro and Aggressive Trail use.

– Security Smart Key Bracelet: each user will have a stylish Smart Key bracelet that will allow the removal of the battery, for charging without the need of a key. It can be configured as a safety bracelet so that only the rider can operate his AtomX.

– X Display & Remote: the X Display is located inside the handlebar to ensure maximum protection. It is a 2.8″ LCD colour display. It incorporates Ant+ and Bluetooth connection and gives information of autonomy, battery, time, distance, speed, power, cadence and time. The X Remote, incorporates the vibration function for notifications.

Main Features:
Size:	S,M,L,XL
Frame:	140mm Full Susp. Carbon 29″ Internal Cable Routing, Acros ICR / Alloy Rear Triangle
Fork:	FOX 34 FLOAT Rhythm 140mm 15QR
Shock absorber:	FOX FLOAT DPS Performance
Motor:	BROSE Smag
Battery:	720 Wh.
Battery Life:	Up To 155 Km
Transmission
Gear:	Shimano Deore 1×11 speed
Shift levers:	Shimano Deore 1×11 speed
Crankset:	Praxis 34 teeth
Cassette:	Shimano CSM6100 12-speed (10-51)
Chain:	Shimano CNM7100 12-speed
Brakes
Front brake:	Shimano MT420 4 Piston
Rear brake:	Shimano MT420 4 Piston
Wheels and tyres
Rims:	Race Face Ar 30 TR
Tyres:	Maxxis Minion TPI120 Terra EXO TR 29 “X2,5/2,4
Components
Handlebars:	BH Lite 35 780mm
Power:	Race Face Aeffect 35
Saddle:	Prologo Proxim W450 Stn
Seat post:	Race Face DP Aeffect 31,6
Pedals:	Not included
